CAST ONE PIECE BALL VALVES


SERIES 1800R  800 WOG
Ends: Screwed



  Features
CF8M Body and Ball Construction
RTFE Seats
Locking Handle
Oval Handles also Available




           RB : Reduced bore          FB : Full bore
           Dimensions are in inches and approximate weight in lb

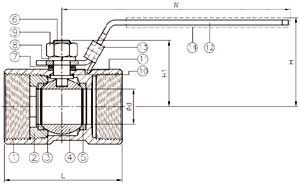

NPS d L H H1 W Torque Weight Cv
¼ 0.2 1.54 1.5 0.67 2.43 7.1 0.2 4
⅜ 0.28 1.73 1.62 0.84 2.89 8.9 0.2 8
½ 0.35 2.22 1.6 1.03 3.73 10.6 0.4 13
¾ 0.49 2.32 1.74 1.13 3.73 15.9 0.7 26
1 0.59 2.8 2.22 1.44 4.39 25.7 0.9 40
1¼ 0.79 3.07 2.44 1.59 4.43 44.3 1.5 73
1½ 0.98 3.27 2.49 1.83 6.3 65.5 2 114
2 1.26 3.94 2.7 2.01 6.32 77.9 3.1 199

           Materials of construction
Body ASTM A 351 Gr CF8M/A 216 WCB
Retainer
Body seal PTFE
Ball ASTM A 351 Gr CF8M
Ball seat PTFE/RTFE
Stem ASTM A 276 TYPE 316
Flat washer AISI 304
Spring washer
Stem nut
Thrust washer PTFE
Packing
Handle AISI 304
Latch lock
Handel sleeve PVC
