TRUNNION MOUNTED BALL VALVES
Cast Two Piece Bolted

   SERIES T84R2/F2 CLASS 150

         SERIES T85R2/F2 CLASS 300
   SERIES T87R2/F2 CLASS 600        SERIES T89R2/F2 CLASS 900
   SERIES T90R2/F2 CLASS 1500         SERIES T91R2/F2 CLASS 2500



Ends: Flanged, and Welded

Features


Anti blow-out proof stem
Live loaded stem design meets stringent fugitive norms
Improved seat for long life and bubble tight shut off
Single piston seat effect
Choice of seat material
Firesafe and antistatic design confirms to API 607 and API 6FA
Design standard API 6D and ANSI B16.34


                      ON REQUEST

Emergency sealant injection
Double piston seat effect
Compliance to NACE MR0175 for sour gas service
Transition pups for valves with welding ends
Vent and drain valve
Stem extension

                   OPTIONal VALVE OPERATors


Lever or gear

Pneumatic actuators
Electric actuators
Hydraulic actuators
Gas over oil actuators

Click Below for

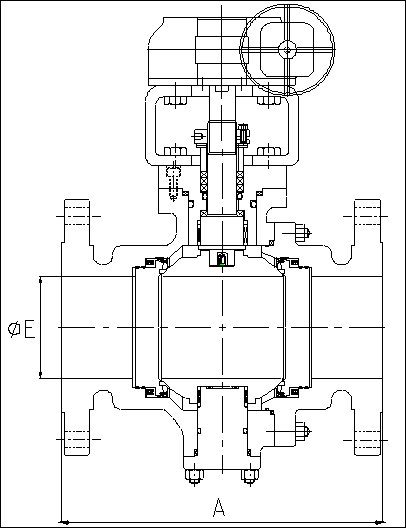

Dimension chart          Materials of construction
