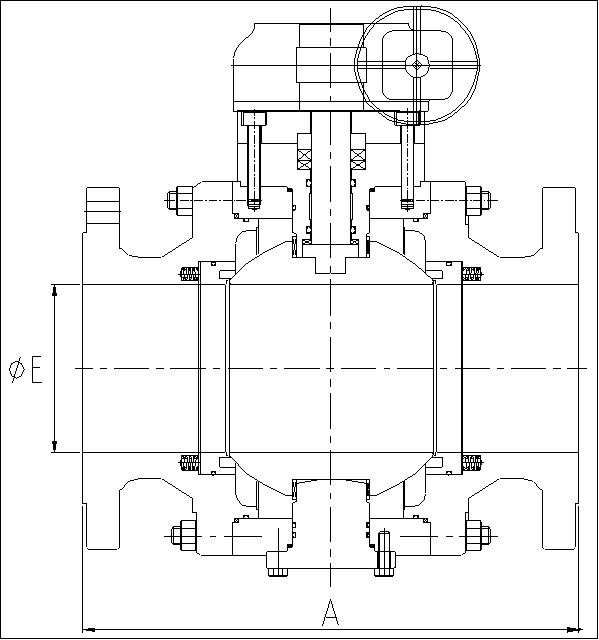

TRUNNION MOUNTED BALL VALVES

Forged Three Piece Bolted

SERIES T84R3/F3 CLASS 150

 SERIES T85R3/F3 CLASS 300
SERIES T87R3/F3 CLASS 600 SERIES T89R3/F3 CLASS 900
SERIES T90R3/F3 CLASS 1500 SERIES T91R3/F3 CLASS 2500

Ends: Flanged, and Welded

Features



Anti blow-out proof stem
Live loaded stem design meets stringent fugitive norms
Improved seat for long life and bubble tight shut off
Single piston seat effect
Choice of seat material
Firesafe and antistatic design confirms to API 607 and API 6FA
Design standard API 6D and ANSI B16.34


                                     ON REQUEST

Emergency sealant injection
Double piston seat effect
Double block and bleed
Transition pups for welded valves
Vent and drain valve
Stem extension

                     OPTIONal VALVE OPERATors


Lever or gear

Pneumatic actuators
Electric actuators
Hydraulic actuators
Gas over oil actuators
