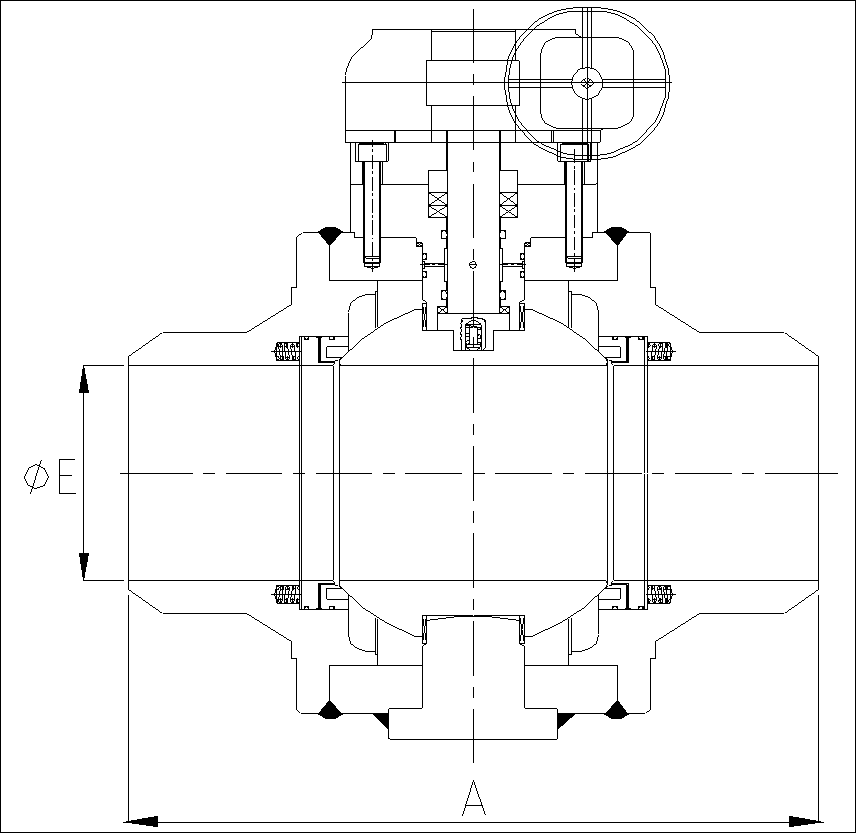

TRUNNION MOUNTED BALL VALVES

FULLY WELDED

CAST VALVE SERIES

T84R2/F2 CLASS 150
T85R2/F2 CLASS 300
T87R2/F2 CLASS 600
T89R2/F2 CLASS 900
  T90R2/F2 CLASS 1500
     T91R2/F2 CLASS 2500
FORGED VALVE SERIES

T84R3/F3 CLASS 150
T85R3/F3 CLASS 300
T87R3/F3 CLASS 600
T89R3/F3 CLASS 900
  T90R3/F3 CLASS 1500
  T91R3/F3 CLASS 2500

Ends: Flanged, and Welded

FEATURES



Anti blow-out proof stem
Live loaded stem design meets stringent fugitive norms
Improved seat for long life and bubble tight shut off
Single piston seat effect
Choice of seat material
Firesafe and antistatic design confirms to API 607 and API 6FA
Design standard API 6D and ANSI B16.34

                              ON REQUEST
Emergency sealant injection
Double piston seat effect
Compliance to NACE MR0175 for sour gas service
Transition pups for valves with welding ends
Vent and drain valve
Stem extension

                     OPTIONal VALVE OPERATors

Lever or gear

Pneumatic actuators
Electric actuators
Hydraulic actuators
Gas over oil actuators
